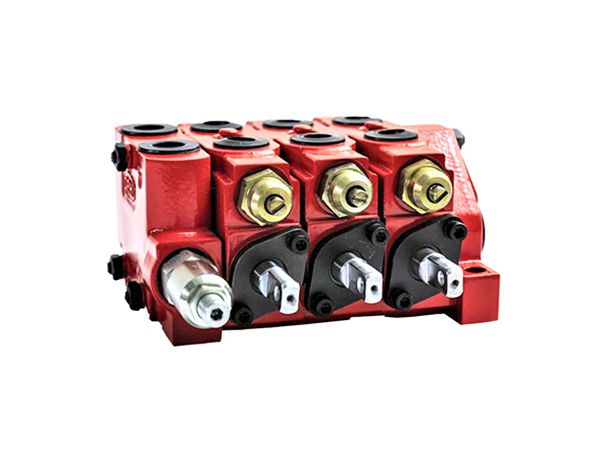

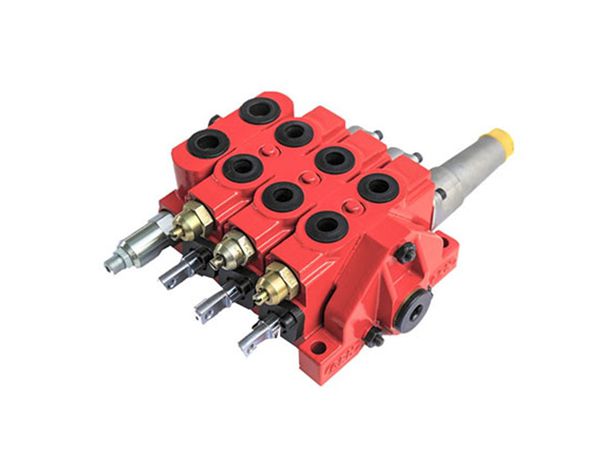

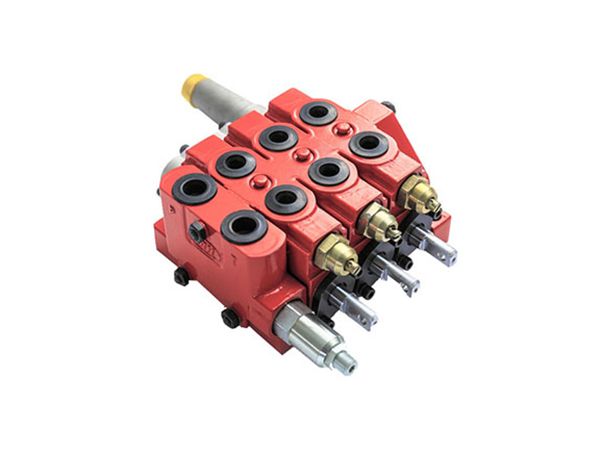

GKV50 | 20-60L/min
Sectional Directional Control Valve
GRH offers a lineup of sectional directional control valves divided in three series, including the GKV35 and GKV80. The GKV50 series stands out for its compact size and lightweight design, making it suitable for complex system configurations.
Key attributes of the GKV50 series include
- Compact and lightweight, ideal for tight installation spaces.
- Powerful functionality to meet the demands of complex systems.
- High processing precision with imported equipment, ensuring internal tolerance accuracy.
- Offers great value with customizable options and complete system supply.
| Rated flow rate | 50L/min | Maximum pressure at T port | 25bar |
| Maximum flow rate | 60L/min | Internal leakage (70 bar) A/B to T port | 25-35cc/min |
| Minimum flow rate | 20L/min | Internal leakage (70 bar) Hydraulic lock on A/B to T ports | 2-5cc/min |
| Maximum pressure in P port | 350bar | Spool stroke (position 1/2) | +7/-7mm |
| A/B port max. pressure | 350bar | Spool stroke with float (positions 1/2 and F) | +7/-7 -10mm |
The GKV50 series of sectional directional control valves, known for their flexible assembly options that allow for the integration of multiple functions, are extensively used in agricultural machinery, construction machinery, and industrial equipment. Their adaptability makes them a preferred choice for a variety of applications, including wheel loaders, forklifts, harvesters, tractors, and boom truck cranes, where its ability to cater to diverse operational needs enhances machinery efficiency and functionality.
