GS | 80.5-564.9ml/r
Orbital Motor
GS | 80.5-564.9ml/r
Orbital Motor

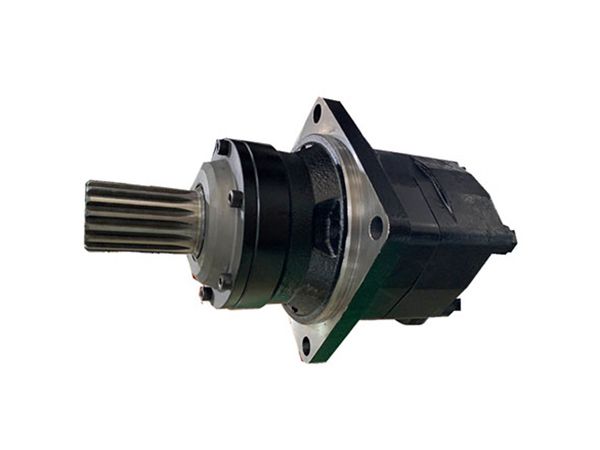

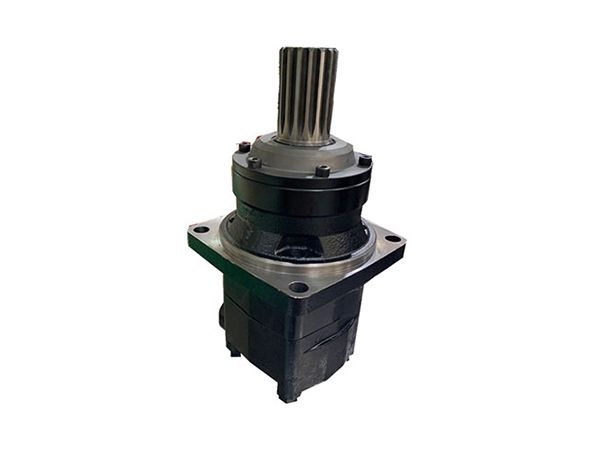

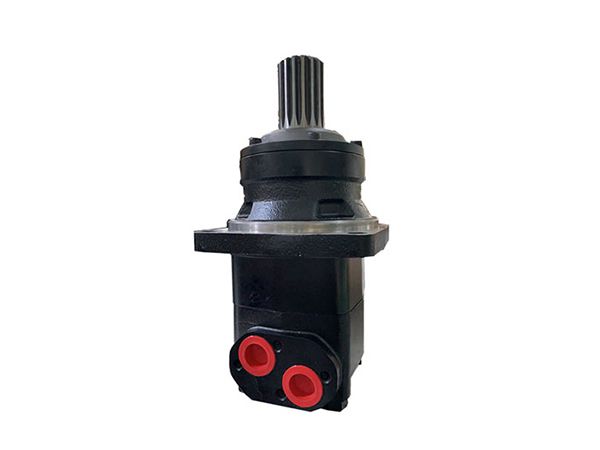

The GS series orbit motor feature a roll-gerotor with disc valve. The distribution valve is independent from the output shaft and drives to the versatile shaft. A balance plate is equipped to balance the hydraulic pressure in the distribution valve. This orbit motor maintains a high efficiency and outstanding starting performance, even under high pressure conditions.
Optional functions
- Disc valve, roll-gerotor
- Flange and wheel mount
- Short motor
- Motor with rear drum brake
- Tacho connection
- Speed sensing
- Side and rear port
- Shaft extension: straight, spline, tapered
- Metric and BSPP port
Applications
- Conveyors
- Paving machines
- Metal working machines
- Specialized vehicles, etc.
- Agricultural machinery
- Food Industry
- Mining Machinery
Specifications
| Max Displacement | cm3/rev | 564.9 |
| Max Speed | RPM | 1000 |
| Max Torque | Nm | Cont: 850 int: 990 |
| Max output | Kw | 23 |
| Max Pressure Drop | MPa | Cont: 21 int:27.5 |
| Max Flow | Ipm | 90 |
| Min Speed | RPM | 5 |
| Permissible Shaft Loads | N | 500 |
| Pressure Fluid | DIN 51524 or ISO 6743/4 | |
| Fluid Temperature Range | ℃ | -40~140 |
| Viscosity Range | mm2/s | 20~75 |
| Filtration | ISO code 20/16 |
RH orbit motor converts hydraulic energy to mechanical energy, applicable to many industrials like agricultural harvesters, seeder, aerial work platform, garbage truck, excavator, forklift, cleaning equipment, etc.
