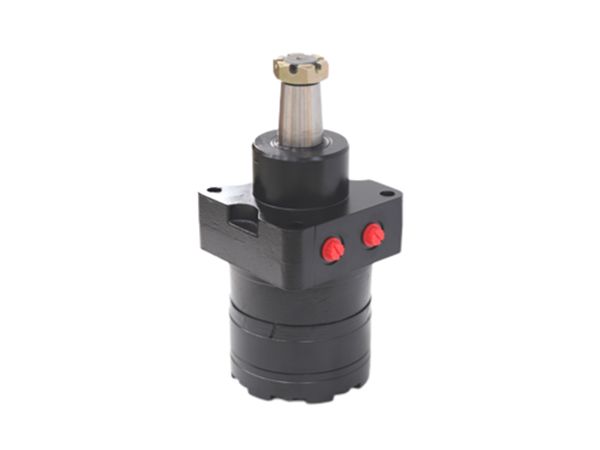

GWD | 120-750ml/r
Orbital Motor
GWD | 120-750ml/r
Orbital Motor
The GWD series motor is a prominent part of the GRH product line, renowned for delivering high torque capabilities of up to 11,100 lb-in. This gear motor is packed with top-tier features that set it apart in the industry. Its optimized geroler profile ensures exceptionally smooth operation, and the advanced disc valve technology not only delivers outstanding performance but also offers one of the highest load capacities available, making it ideal for extremely demanding applications.
Optional functions
- Equipped with a reliable parking brake
- Time-tested components that provide excellent reliability
- Industry-leading disc valve technology, known for its superior efficiency
- Leak-resistant design, with a front bearing that protects the shaft seal
- Capable of handling up to 11,100 lb-in of torque intermittently and a flow rate of up to 30 GPM intermittently
- Offers a wide range of 12 displacements, from 6.9 to 46 CID
- Shaft sizes available up to 1-5/8 inches
- Features a 3-1/4 inch front pilot and a 5 inch rear pilot
Applications
- Scissor Lift
- Boom Lift
- Mower
- Turf care equipment
- Stump grinder
- Marine winches
- Trenchers
- Fishing Winches
- Recycling and Refuse Equipment
Specifications
| Displacement cm³/rev. | 120 | 160 | 200 | 230 | 260 | 300 | 350 | 375 | 470 | 540 | 620 | 750 |
| Length mm | 156 | 156 | 159 | 162 | 165 | 168 | 182 | 174 | 182 | 188 | 196 | 206 |

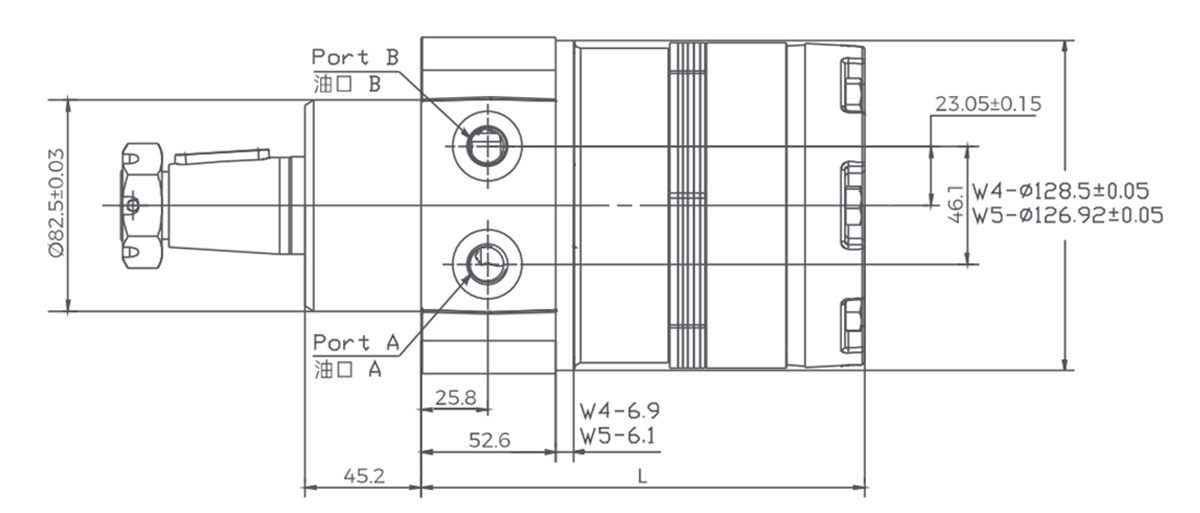

Dimensions
