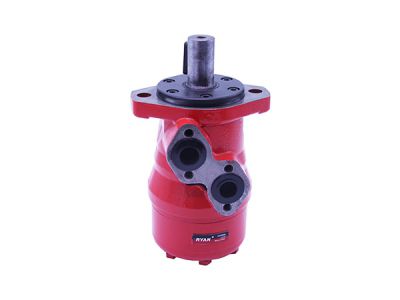

GR | 51.5-397ml/r
Orbital Motor
GR | 51.5-397ml/r
Orbital Motor
The GR series orbit motor is equipped with a spool valve and an integrated design with a distribution valve and output shaft. The universal shaft drives the distribution valve to transfer the mechanical energy from the gear to the output shaft. The valve has a hydrodynamic bearing, with a long service life within the maximum load. A roll-gearmotor set is also utilized.
Optional functions
- Spool valve, roll-gerotor
- Flange coupling
- Motor with needle bearing
- Side and bottom port
- Shaft extension: straight, spline, tapered
- Metric and BSPP port
- Speed sensing
Applications
- Conveying machinery
- Robot and manipulator feeding machines
- Metal working machines
- Textile machines
- Agricultural machinery
- Food industry
- Lawnmowers
Specifications
| Max Displacement | cm³/rev | 397 |
| Max Speed | RPM | 970 |
| Max Torque | Nm | cont:610 int：690 |
| Max output | Kw | 15 |
| Max Pressure Drop | MPa | Cont:17.5 int: 20 |
| Max Flow | Ipm | 75 |
| Min Speed | RPM | 10 |
| Pressure Fluid | DIN 51524 or ISO 6743/4 | |
| Fluid Temperature Range | ℃ | -40~140 |
| Viscosity Range | mm²/s | 20~75 |
| Filtration | ISO code 20/16 |

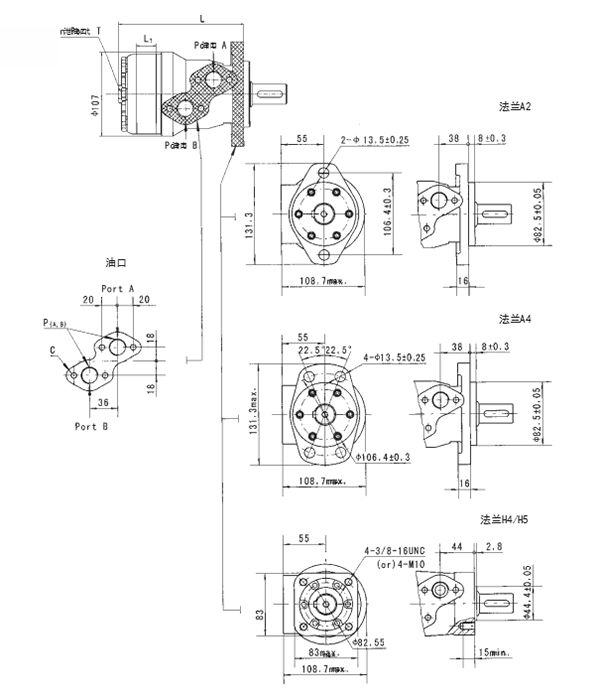

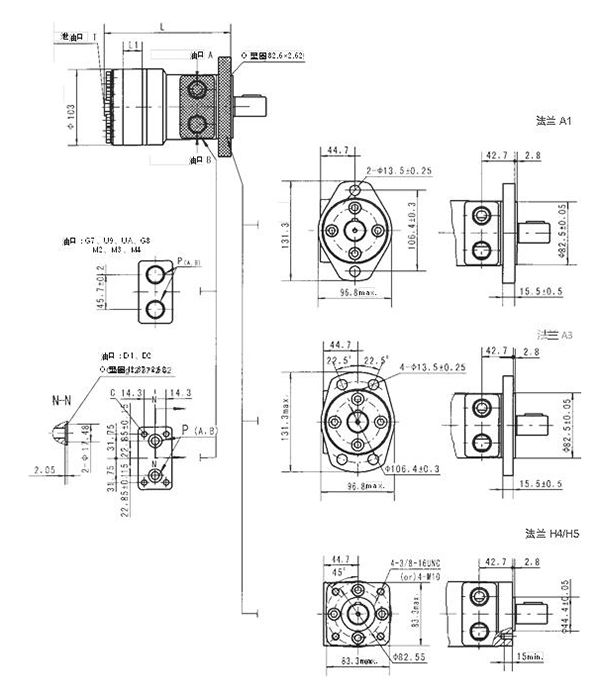

Dimensions
