CBT | 8-16ml/r

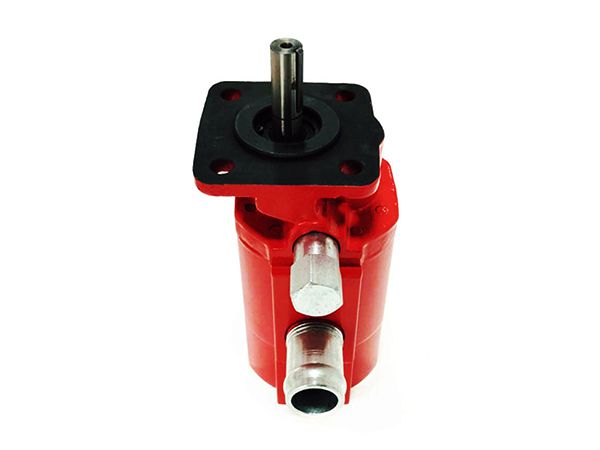

Hydraulic Gear Pump for Log Splitter
CBT | 8-16ml/r
Hydraulic Gear Pump for Log Splitter
Our hydraulic gear pump, commonly referred to as a hi-lo pump, is a dual-stage pump featuring two working pressures. While it is primarily used in log splitters, its versatile design also makes it suitable for systems with similar working principles, such as riveting machines. This gear pump's dual-function capability allows for efficient operation in various applications, making it a valuable tool in equipment that requires different pressure levels for optimal performance.
Specifications
| Model | Flow (gpm) | Pressure (Psi) | Displacement (Cu.in/r) | Speed (rpm) | D (mm) | |||
| 3600r/min | Low | High | Low | High | Inlet port | Outlet port | ||
| 8 | 400/900 | 3000 | 0.385 | 0.13 | 3600 | 1 in PIPE | 1/2 in NPT | |
| 8.5 | 400/900 | 3000 | 0.385 | 0.183 | ||||
| 9 | 400/900 | 3000 | 0.385 | 0.22 | ||||
| 10 | 400/900 | 3000 | 0.537 | 0.13 | ||||
| 10.5 | 400/900 | 3000 | 0.537 | 0.183 | ||||
| 11 | 400/900 | 3000 | 0.537 | 0.22 | ||||
| 11.5 | 400/900 | 3000 | 0.537 | 0.256 | ||||
| 12 | 400/900 | 3000 | 0.665 | 0.13 | ||||
| 12.5 | 400/900 | 3000 | 0.665 | 0.183 | ||||
| 13 | 400/900 | 3000 | 0.665 | 0.22 | ||||
| 13.5 | 400/900 | 3000 | 0.665 | 0.256 | ||||
| 16 | 400/900 | 3000 | 0.793 | 0.265 | ||||
| 22 | 400/900 | 3000 | 0.93 | 0.465 | NPTF 1 | NPTF3/ | ||
| 28 | 400/900 | 3000 | 1.395 | 0.465 | G1 | G3/4 | ||
