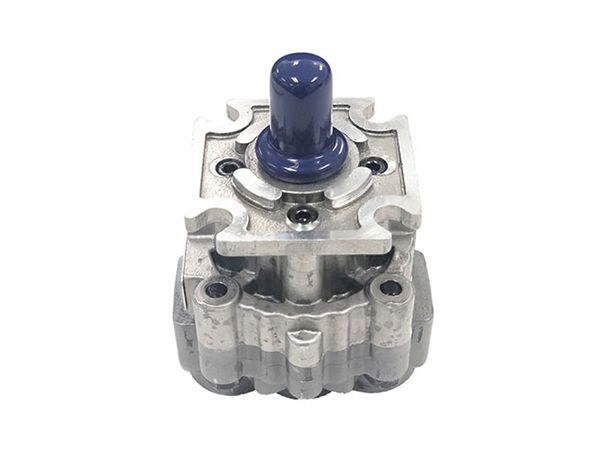

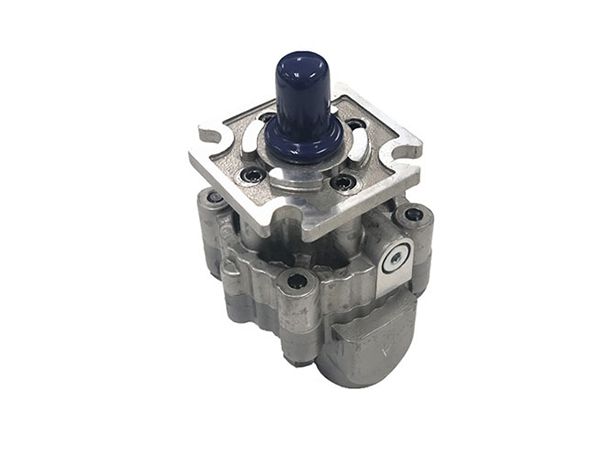

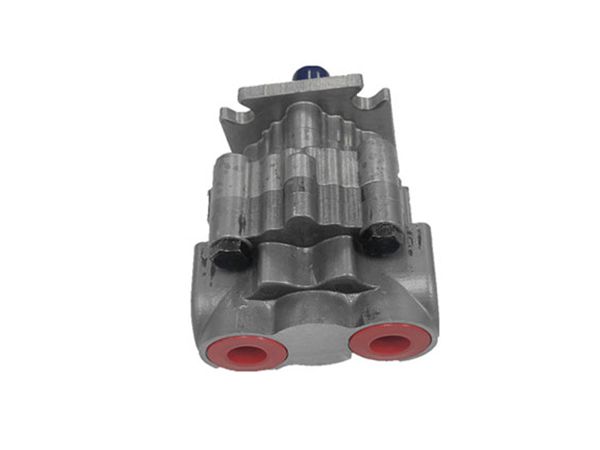

GGM | 3.57-11.47ml/r
Orbital Motor
GGM | 3.57-11.47ml/r
Orbital Motor
The GGM series of orbital motors from GRH are high-speed, low-torque motors, offering an impressive combination of features:
- They provide high performance and power density
- Capable of reaching speeds up to 5000 rpm, they boast an extended service life
- Manufactured in a constant-temperature, dust-free workshop, our orbital motors are built with high-precision components
Applications
- Engineering machinery
- Waste/Tipper trucks
- Material handling equipment
- Forestry machinery
- Agricultural machinery
- Industrial machinery
Specifications
| Model | ||||||
| Displacement cm³/rev | 3.57 | 6.094 | 7.374 | 9.5 | 11.471 | |
| Max. speed RPM | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Inlet flow L (1000 bar) | 3.6 | 6.1 | 7.4 | 9.5 | 11.5 | |
| Max. inlet pressure bar | Continuous | 138 | 138 | 138 | 138 | 138 |
| Intermittent | 172.5 | 172.5 | 172.5 | 172.5 | 172.5 | |
| Output torque Nm /69bar* | 4 | 7 | 8 | 10 | 12 | |
| Weight kg | 1.25 | 1.36 | 1.41 | 1.5 | 1.59 | |
| Max. radial force N ** | 755 | 578 | 490 | 310 | 132 | |

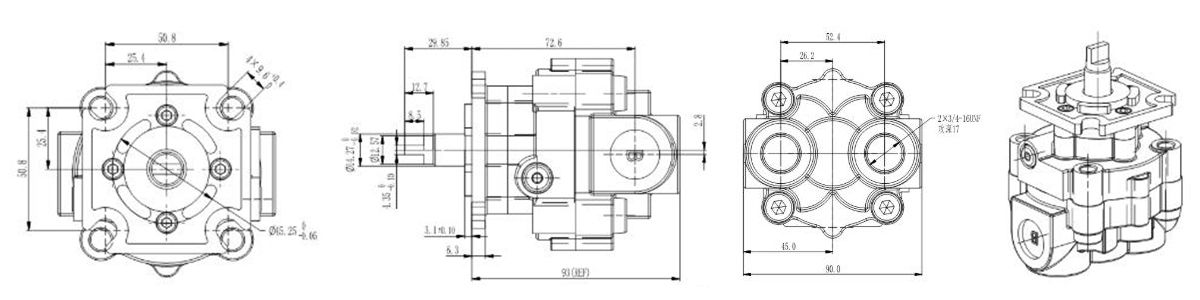

Dimensions
