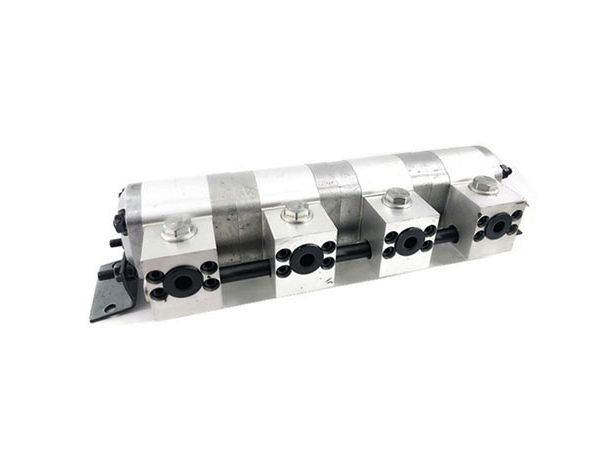

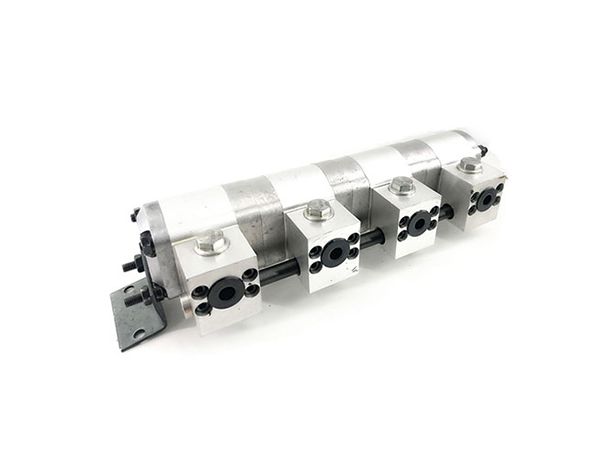

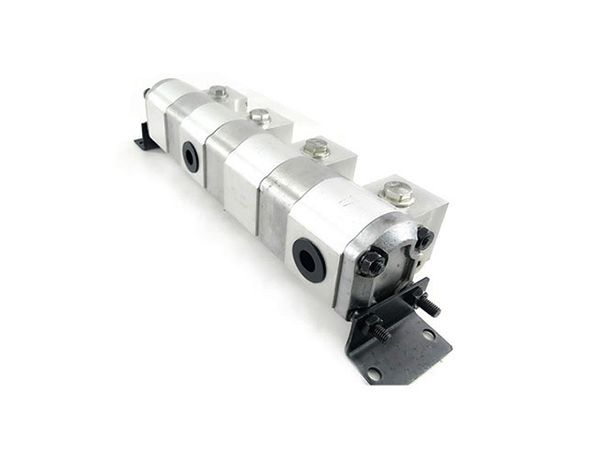

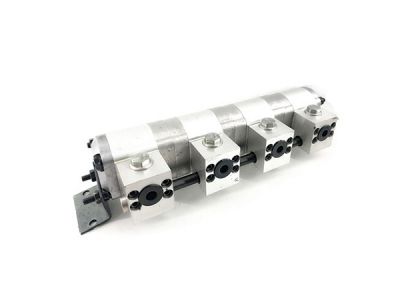

1AFDF | 2-7ml/r
Gear Flow Divider
The 1AFDF series, alongside the 1FDF, 2FDF, and 3FDF, forms part of the quartet of gear flow dividers offered by GRH, engineered to cater to a displacement range of 1.6 to 70 ml/r. These dividers are designed to ensure the synchronized operation of actuators by connecting two or more gear motors via a coupler, achieving high synchronization precision. They are designed to integrate seamlessly with relief valves, check valves, and speed control valves, enhancing system protection and functionality. The precision of the flow dividers manufactured by GRH is notable, with accuracy reaching ±1.5% to ±2%.
Key attributes of the 1AFDF series include
- A displacement range from 2 to 7 ml/r, suitable for various applications.
- Ensures synchronized operation of actuators, vital for the seamless performance of hydraulic systems.
- High synchronization accuracy, contributing to the efficiency and reliability of operations.
| Displacement (ml/r) | SAE port | Min. flow/sec | Max. flow/sec | Inlet pressure differential | |
| Inlet port | Outlet port | ||||
| 2.0 | G1/2 | G3/8 | 1.0 | 4.0 | 200 |
| 3.0 | G1/2 | G3/8 | 1.5 | 6.0 | 200 |
| 4.1 | G1/2 | G3/8 | 2.1 | 8.2 | 200 |
| 5.1 | G1/2 | G3/8 | 2.55 | 10.2 | 200 |
| 6.1 | G1/2 | G3/8 | 3.05 | 12.2 | 200 |
| 7.0 | G1/2 | G3/8 | 3.50 | 14.0 | 200 |
The 1AFDF gear flow dividers are employed across a diverse range of fields, including industrial equipment, storage solutions, and agricultural machinery, underscoring their versatility and critical functionality. Their application is paramount in machinery such as boom truck cranes, aerial work platforms, tractors, harvesters, log splitters, and forklifts, where precise flow division and synchronization significantly enhance operational efficiency and reliability.
