4 Series of flow dividers available with displacement of 1.6-70ml/r

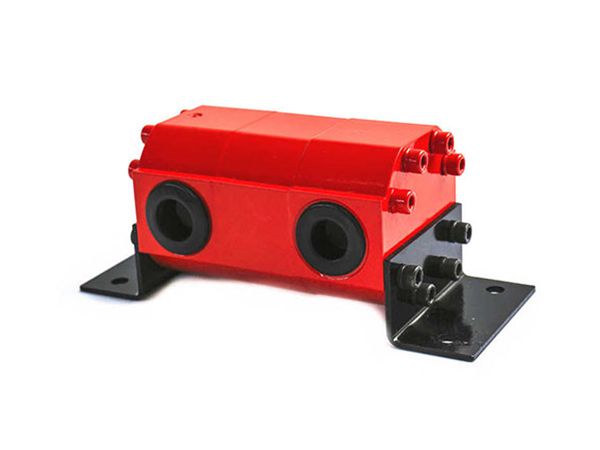

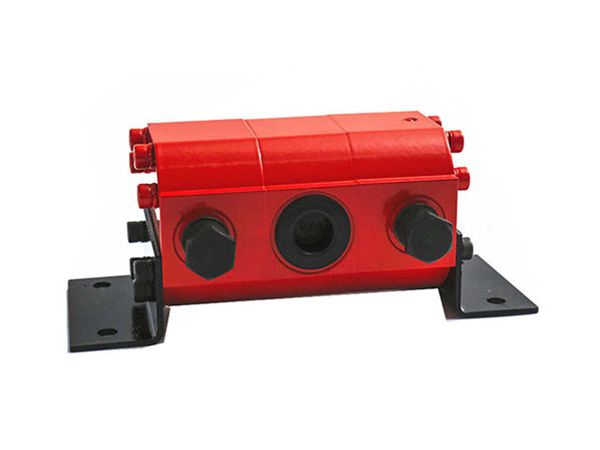

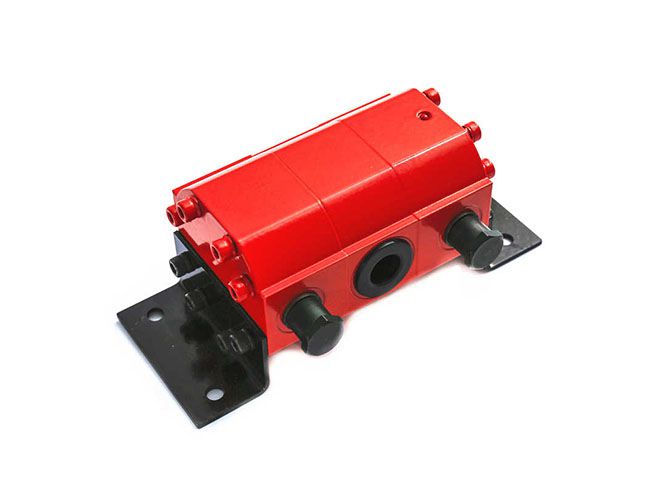

The 1FDF series, as part of our four gear flow divider series including 1AFDF, 2FDF, and 3FDF, stands out for its precision in managing hydraulic flows, offering a displacement range of 1.6 to 8.42 ml/r. These gear flow dividers are designed to connect multiple gear motors via a coupler, forming a system that ensures the synchronized operation of actuators with high accuracy. The integration of additional valves enhances system protection and functionality.

Features of the 1FDF series include

• A displacement range from 1.6 to 8.42 ml/r, designed for optimal flow distribution.
• Maintains pressure loss within 16 to 19 bar for efficient system performance.
• Ensures synchronized actuator operations with high precision, achieving synchronization accuracy of ±1.5% to ±2%.
• The ability to integrate with relief valves, check valves, and speed control valves, providing system protection and supplementary functions.
